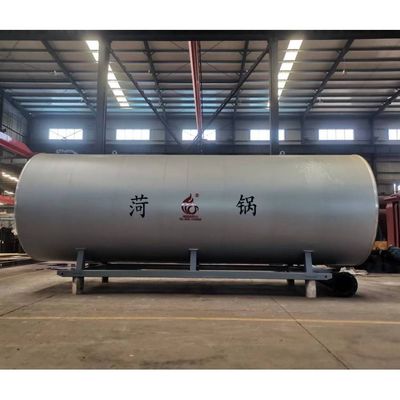

4 Tons Horizontal Gas Gas Updraft Heater Industrial Horizontal Oil Liquid Boiler

1 set
MOQ
4 Tons Horizontal Gas Gas Updraft Heater Industrial Horizontal Oil Liquid Boiler
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: Egypt, Turkey, United Kingdom, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Romania, Bangladesh, South Africa, Kazakhstan, U
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire tube thermal oil
Pressure: Low Pressure
Steam Production: Max. 30t/h
Style: Horizontal
Fuel: Oil&gas-fired
Output: Thermal transfer oil
Dimension(L*W*H): 5800 x 2750 x 2750 mm
Weight: 13.2tons
Warranty: 1 Year
Key Selling Points: Long Service Life
After Warranty Service: Field maintenance and Engineers availableoverseas
Boiler capacity: 350-14000MW
Thermal efficiency: 92.5-97.21
Boiler type: imported Italy baltur burner
Design fuel: Natural Gas, Diesel Oil, Heavy Oil Boiler
Type of boiler: Horizontal Thermal Oil Boiler
証明: ISO9001 ASME EU
Advantages: high safety and good quality
selling points: field repair available/competitive price
基本情報
証明: ISO9001 ASME EU
お支払配送条件
Packaging Details: Plastic industry used 1200kw gas fired thermal oil boiler; thermal oil boiler, thermal oil heating 1.6sets 150000kcal/h thermal oil boiler can be packed into one 20GP 2.2sets 200000kcal/h thermal oil heating boiler can be packed into one 20GP 3.2sets 3000
Supply Ability: 100 Set/Sets per Month
製品の説明
Product Description
Industrial used natural gas diesel oil fired thermal oil furnace boiler
industrial thermal oil boiler, gas thermal oil boiler, thermal oil furnace
Working principle of organic heat carrier furnace:

The organic heat carrier furnace(thermal oil boiler) is the once through special boiler, uses coal (bituminous coal, anthracite),light oil, heavy oil, liquefied petroleum gas, natural gas, artificial gas, waste wood, sanding powder, etc. as fuel, and the heat transfer oil is used as a heat carrier, and the circulating pump is used to force liquid phase circulation to transfer the heat energy to heat equipment, and then returns to the heating furnace to reheat the boiler.
Technical parameters of thermal oil boiler
Boiler Model
700Y(Q)
1200Y(Q)
1900Y(Q)
3500Y(Q)
7000Y(Q)
12000Y(Q)
14000Y(Q)
Heat Supply of Boiler
104kcal/h
60
100
160
300
600
1000
1200
Rated heating power kw
700
1200
1900
3500
7000
12000
14000
Working pressure MPa
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Boiler thermal efficiency %
93.6/94.5
93.28/93.01
92.7/92.38
94.33/94.07
92.69/92.4
96.96/96.44
97.21/97.85
Rated supply oil temperature ℃
300
300
300
300
300
300
300
Rated return oil temperature ℃
280
280
280
280
280
280
280
Max.allowance working temperature ℃
320
320
320
320
320
320
320
Oil capacity in furnace m³
0.64
0.92
1.58
3.11
9.9
14
14.6
Cycle oil capacity m³
56.7
97.2
153.9
283
566.9
947.9
1128.4
Boiler body weight t
5.05
6.75
8.2
15.5
36.4
51.3
58.6
Outline dimension
(Length*Width*Height)mm
3758x1920x2050
4500x2125x2227
5478 x 2225 x 2300
6880x2885x2830
8630x3978x3615
11000x4500x4166
13350x4880x4587
Main Features for Thermal Oil Boiler
Industrial used natural gas diesel oil fired thermal oil furnace boiler
industrial thermal oil boiler, gas thermal oil boiler, thermal oil furnace

1. high working temperature at lower operating pressure
2.complete automatic control and safety monitoring device
3. good thermal stability and precise temperature adjustment
4. the closed loop heating greatly increase the heat utilization efficiency
5. higher energy saving effect than steam boiler
Engineering Case
Details Images
Burner
Brand: Italy Baltur
Original: Italy
Advanced proportional adjustment, fully automatic and precise control for maximum fuel savings.
Circualting Pump
Model: RY100-65/200
Head:50m
Flow:100m3/h
Power:22kw
Electric Control Cabinet
1.Fully automatic electronic control system, LCD liquid crystal touch screen.Chinese & English Version
2. Steam pressure control of steam boilers;
3.the water level control of the drum;3. System constant pressure control;
4. Computer monitoring and protection plus independent circuit protection in case of water shortage, over-pressure and over
temperature;
5, burner 1-3 fire control; 6. Working time record; 7, flameout alarm;.
Economzier or Energy Saving

Made of ND steel, ND steel is the most ideal steel for "sulfur-resistant low-temperature dew point corrosion" at home and abroad.
Compared with carbon steel, Japan imported steel and stainless steel corrosion resistance, it is 1.84 times that of Japanese CR1R
steel. The austenitic stainless steel is 2.97 times, which is 14.11 times that of ordinary carbon steel, and has a long service
life. It has strong thermal conductivity and can increase thermal efficiency by more than 3.5%.
Company Profie
Certifications
workship
Packing & Delivery
Industrial used natural gas diesel oil fired thermal oil furnace boiler
industrial thermal oil boiler, gas thermal oil boiler, thermal oil furnace
thermal oil boiler packing and loading :
1.one set YYQW-350 model gas fired thermal oil boiler should load in one 40HQ
2.one set YYQW-500 model oil fired thermal oil boiler price should load in one 40HQ
3.one set YYQW-700 model thermal oil boiler should load in one 40HQ
4.one set YYQW-1200 model thermal oil boiler price should load in one 40HQ
5.one set YYQW-1400 model thermal oil heating boiler should load in one 40HQ
6.one set YYQW-1900 model plastic industry thermal oil boiler price should load in one 40HQ
7.large capacity of thermal oil boiler, like YYQW-2500, YYQW-3500 gas boiler should load in 40FR
