ホーム /製品/水ドラムボイラー/CFB CFB Boiler SA213T11 Alloy Steel Power Plant Boiler Parts Boiler Drum

CFB CFB Boiler SA213T11 Alloy Steel Power Plant Boiler Parts Boiler Drum

1 Set
MOQ
$2,500.00(>=1 Sets)
価格
CFB CFB Boiler SA213T11 Alloy Steel Power Plant Boiler Parts Boiler Drum
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Warranty: 1.5 years
Applicable Industries: Energy & Mining
Weight (KG): 1000
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Type: Heating Elements
Keywords: CFB Boiler Boiler Parts Boiler Drum
Application: power station CFB boiler
証明: ASME
Color: Customer's Requirement
Material: Carbon Steel
After Warranty Service: No service
Product name: CFB Boiler Boiler Parts Boiler Drum
基本情報
証明: ASME
お支払配送条件
Packaging Details: SA213T11 Alloy Steel Power Station CFB Boiler Boiler Parts Boiler Drum Normal wooden pack
Supply Ability: 500 Metric Ton/Metric Tons per Month SA213T11 Alloy Steel Power Station CFB Boiler Boiler Parts Boile
製品の説明
Product Name

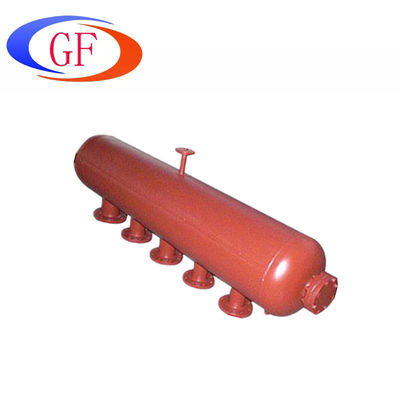

Boiler Steam Drum ( Steam Water Separator )
Applied Area
Natural circulation boiler
Drum Shell Plate Material
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material
Same as shell
Nozzle Tube Material
As per design
Standard
China GB, ASME, EN
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Working Temperature
Saturation Temperature at rated pressure
Working Pressure
1.6 MPa ~ 22.5 MPa
Shell Plate Thickness
(Drum Wall Thickness)
≤150 mm
Drum Diameter
≤3,200 mm
Drum Length
≤25,000 mm
Welding
- Shell : SMAW, SAW
- Nozzle tube : GTAW (TIG), SMAW
Welding NDT
- Shell longitudinal seam : 100% RT, 100% UT
- Shell circumferential seam : 100% RT, 15% UT
- Nozzle tube angle seam : 100% UT, 100% MT
Q1:How long is the warranty period? We provide 12 months warranty for all spare parts(exclude fragile parts). Q2:How do you control the quality? 1) All GF machines are in strict accordance with the ISO quality and CE system requirements. 2) Each procedure is crafted by professional Skilled labour, followed by particular QC 3) All information of our products can be checked in efficient management system. Q3:What certifications do you have? All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design. Q4:What kind of service do you provide? Before sales: Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation. Q5:Are you a factory or trading company, where are you located？ We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.
