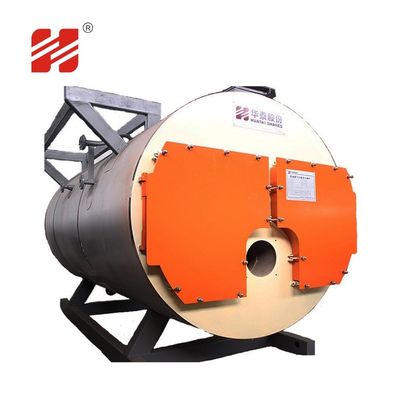

Hot water boiler for sale adopts horizontal three return wet back structure,which improves boiler operation environment, boiler efficiency and service life; all the flue gas pipes are arranged in the water, the tail part is equipped with a waste heat water tank and sound insulation external packing design, gas chamber is sealed with labyrinth type structure,which can avoid gas leakage phenomenon in the gas chamber.
| Boiler Item | Boiler Model | |||||||
| CWNS0.35 | CWNS0.7 | CWNS1.05 | CWNS1.4 | CWNS2.1 | CWNS2.8 | |||
| Hot Power | MW | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | |
| Working Pressure | MPa | 0 | 0 | 0 | 0 | 0 | 0 | |
| Output Water Temperature | ℃ | 85 | 85 | 85 | 85 | 85 | 85 | |
| Return Water Temperature | ℃ | 60 | 60 | 60 | 60 | 60 | 60 | |
| Boiler Efficiency | % | ≥93% | ≥93% | ≥93% | ≥93% | ≥93% | ≥93% | |
| Fuel | / | Natural Gas,Liquefied gas,City Gas,Naphtha | ||||||
| Fuel consumption | Natural Gas | NM³/h | 36.6 | 73 | 109 | 146 | 212 | 293 |
| Liquefied gas | kg/h | 29.6 | 59 | 89 | 117 | 176 | 234 | |
| City Gas | NM³/h | 78 | 155 | 232 | 302 | 463 | 603 | |
| Naphtha | kg/h | 32 | 65 | 97.5 | 118 | 195 | 235 | |
| City Gas | mbar | 70-200 | 70-200 | 70-200 | 70-200 | 70-200 | 70-200 | |
| Water Circulation Capacity(M³/h) | 12 | 20 | 36 | 48 | 72 | 96 | ||
| Boiler Water Volume (M³) | 1.1 | 3.05 | 5.2 | 5.9 | 13.1 | 15.8 | ||
1.Multiple control protections are set to protect boiler pressure,water level and gas overtemperature ,which ensures safe boiler operation.
2.Hot water boiler for sale combustion is lower-position arranged, water level is in line with national regulations, and strictly in accordance with water level fluctuation time requirements of international standard, which offers a safety drawdown space so as to ensure the safe boiler operation.
3.Manhole arranged on boiler top and handhole arranged in the bottom of the boiler front and rear parts ensures convenient inspection of boiler.
4. Hot water boiler for sale heating area is configured as per more than 25 square meters / ton ,which can fully absorb the effective heat, reduce exhaust temperature and heat loss,ensure adequate output and high thermal efficiency.
HTS owns more than 200 sets of equipment, including Gantry CNC drilling machine,hydraulic swing shearing machine,welding positioner,boiler welding upender,three roll symmetric plate bending machine,etc. as well as a threaded pipe production line,which can guarantee boilers with high manufacturing precision.
HTS provides the following products:
Oil / Gas Fired Boiler Biomass Wood Boiler Thermal Oil Heater(Boiler)
1.What can you get from us before quotation?
A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
Pre-sales service
We have professional sales service team. They have abundant experience, which can help our After-sales servicecustomers to choose and work out the most reasonable solution.
After-sales service
We have professional after-sales service team. And we will be equipped with professional service staff in accordance with different areas. What’s more, we have 24 hours service hot online, which can deal with customers’problem at any time.
