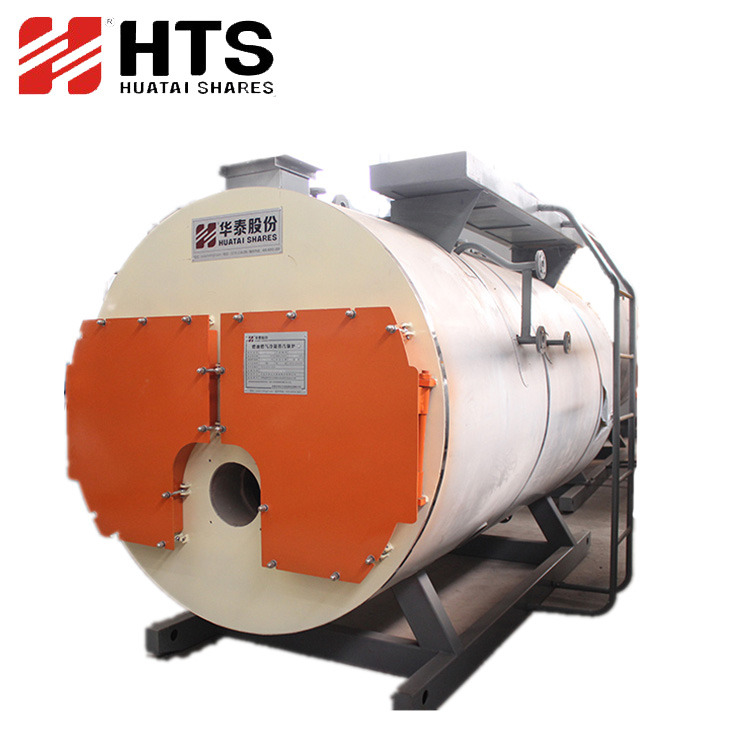

CWNS hot water boiler is a kind of horizontal type internal combustion three return boiler with wet back structure, the combustion chamber adopts lower-position arranged corrugated furnace,which can increase the radiation heating surface and enhance the boiler efficiency to maximum degree.Oil/gas fired boiler is equipped with superior performance burner,which can realize automatic combustion proportion adjustment, automatic feed water regulation, automatic program start-up and shut-down, in addition,it has automatic protection functions of high/low water level,ultra low water level, high pressure, automatic flameout,etc.
CWNS Series Normal Pressures Oil/Gas Hot Water Boiler Outline And Connector dimension
| Boiler Item | Boiler Model | ||||||
| CWNS0.35 | CWNS0.7 | CWNS1.05 | CWNS1.4 | CWNS2.1 | CWNS2.8 | ||
| Dimension (L*W*H) | mm | L:1949mm W:1454mm H:1707mm | L:2656mm W:1600mm H:1852mm | L:3160mm W:1600mm H:1852mm | L:4183mm W:2100mm H:2422mm | L:4440mm W:2250mm H:2600mm | L:4926mm W:2450mm H:2896mm |
| Weight | t | 2.5 | 3.75 | 5.6 | 7.7 | 8.9 | 10.1 |
| Output Water Valve Tube Diameter | DN mm | 50 | 65 | 80 | 100 | 125 | 125 |
| Return Water Valve Tube Diameter | DN mm | 50 | 65 | 80 | 100 | 125 | 125 |
| Atmospheric Connection Valve Tube Diameter | DN mm | 80 | 100 | 125 | 125 | 150% | 200 |
| Blowdown Valve Tube Diameter | DN mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Chimney Diameter | φmm | 250 | 280 | 300 | 350 | 400 | 400 |
1.Three return structure and large volume combustion chamber design make sure the combustion more sufficient.
2.Advanced corrugated furnace structure increases the heat transfer area and satisfies free expansion of the furnace after being heated.
3.Large diameter corrugated furnace provides large combustion space,sufficient fuel combustion,effective absorption of heat and thermal expansion and large radiation heating surface.
4.Adopt wet-back structure with butt weld,which provides high reliability and low maintenance costs.
5.Explosion-proof door offers higher safety guarantee and easier observation of combustion status.
6.Protective functions of over temperature, over pressure, water shortages, leak detection, flame out to ensure safe and reliable operation of boiler.
7.Equipped with imported burner with superior self-control performance,which can achieve fully automatic operation.
HTS puts its long-standing belief in providing customers with high quality boiler products with superior performance,we pursue every detail of boilers to achieve flawlessness so as to provide customers with the most satisfactory products,while advanced and sophisticated machining and fabricating equipment is one of the most important factors affecting product quality.Till now,HTS owns more than 200 sets of equipment, including Gantry CNC drilling machine,hydraulic swing shearing machine,welding positioner,boiler welding upender,three roll symmetric plate bending machine,etc. as well as a threaded pipe production line.We are sure your will be satisfies with our products!
Related Products
Thermal Oil Heater(Boiler) Biomass Wood Boiler Oil / Gas Fired Boiler
Oil / Gas Fired Condensing boiler Oil / Gas Fired Boiler Thermal Oil Heater(Boiler)
Pre-sales service
We have professional sales service team. They have abundant experience, which can help our After-sales servicecustomers to choose and work out the most reasonable solution.
After-sales service
We have professional after-sales service team. And we will be equipped with professional service staff in accordance with different areas. What’s more, we have 24 hours service hot online, which can deal with customers’problem at any time.
A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2.3. What is the requirement for oil/steam temperature and pressure?
2.4. What is the evaporation capacity of boiler required?
3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
